Dihydrogen Complexes

General Information

Dihydrogen complexes are transition metal species in which a molecule of molecular hydrogen acts as a two electron sigma donor to the metal center. In this context, the complex is an arrested intermediate in the oxidative addition of dihydrogen to form a metal dihydride. In fact, many dihydrogen complexes exist in equilibria with their dihydride form:

A dihydrogen gif

Bonding

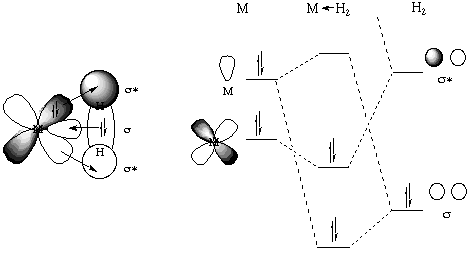

The bonding in dihydrogen complexes does not require any unusual explanation. In its simplest sense it is simply a three-center two-electron bond as is commonly seen in boranes. The H2 molecule thus acts a a neutral two electron sigma donor. One could also describe a back-donation of electrons from a filled metal orbital to the sigma-* orbital on the dihydrogen. This is shown schematically in a generic orbital sense (below, left) as well as an MO sense (below, right):

Bonding sheme

Spectroscopic and Structural Features

The first dihydrogen complex was reported by Greg Kubas of Los Alamos National Laboratory in 1984. A neutron structure was obtained in order to pinpoint the location of the hydrogen atoms:

Kubas' complex

Notice in particular that the H-H bond has been slightly lengthened and that the H-D coupling constant has decreased. However, the H-H distance in this complex is much shorter than in a dihydride complex. Also note that the line width is broadened and the dihydrogen resonance is usually shifted downfield in the 1H NMR of a dihydrogen adduct versus a dihydride.

Another criterion that can be used to help determine whether the complex is a dihydride or a dihydrogen complex is to measure the T1 (spin lattice relaxation time) in the 1H NMR. Although this method has been the subject of some controversy, it is generally agreed that T1 times less than 150 msec are diagnostic of a dihydrogen ligand. The T1 measurement is facile to perform on most modern NMR instruments and requires no special knowledge.

Synthesis

Dihydrogen Complexes are most easily prepared by exposing a precursor compound to hydrogen gas. Typical precursors will have a labile ligand, contain an easily displaced agostic interaction or be less than 18 electrons. Under certain circumstances, dihydrogen complexes can be prepared by the protonation of a hydride ligand. In still other cases, a reversible equilibrium may exist between a dihydride complex and its dihydrogen tautomer.

Further Information

There are dozens of groups involved in this kind of research. For a representative example, take a look at the work of Michael Heinekey.
